#RPGaDAY DIY edition: Build your own gaming table

Thanks to Autocratik for this series of RPG discussion prompts. And to my friend Tyler for his inspiring responses on his blog, Held Action. And for prodding me into reviving my own blog.

I’m going off-script today with my own topic: build your own game table. It isn’t often that I get to talk about gaming and woodworking in the same breath. I made this table because I needed a big surface that was lower than a normal table, but a higher than a coffee table. I also needed something inexpensive. Here’s my solution.

This table can easily be knocked down and stored when not in use. It’s built from one 4×8 foot sheet of plywood and a couple 2x4s. I built this to be comfortable for folks sitting on a couch or easy chair. You can adjust the dimensions to suit your needs.

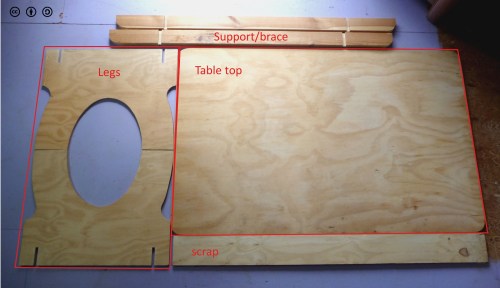

Legs and table top cut from single sheet of plywood.

Legs and table top cut from single sheet of plywood.

I picked a sheet of plywood with a good side and a patched side. I had the home center make the cut to separate the legs from the table top, and then had them cut the top to width. The rest of the cuts I made with a jigsaw.

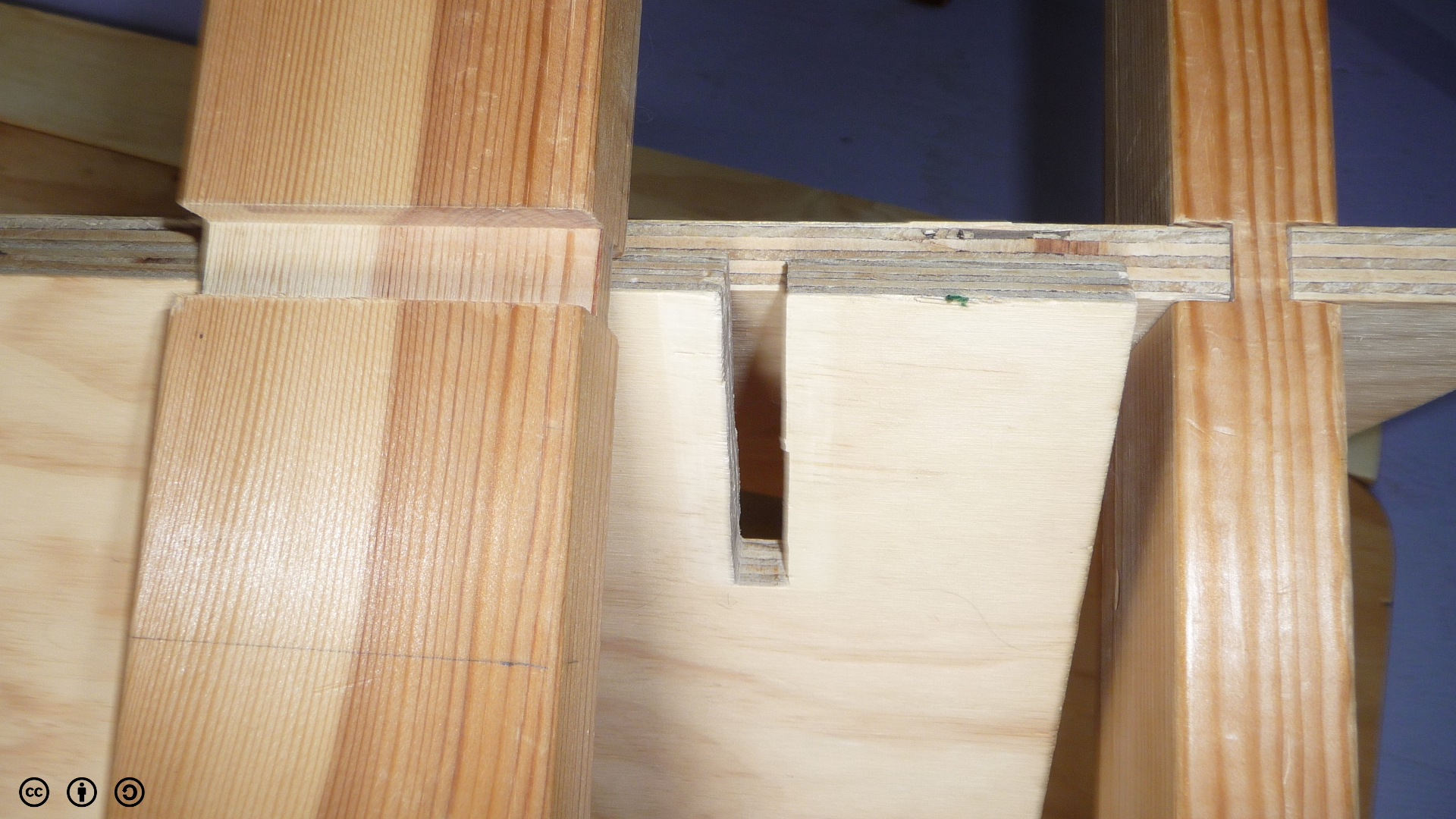

Two-by-fours fit into vertical notch in legs.

Two-by-fours fit into vertical notch in legs.

I used a simple edge-lap joint; grooves on each side of the 2×4 that lock into a vertical notch in the plywood leg piece.

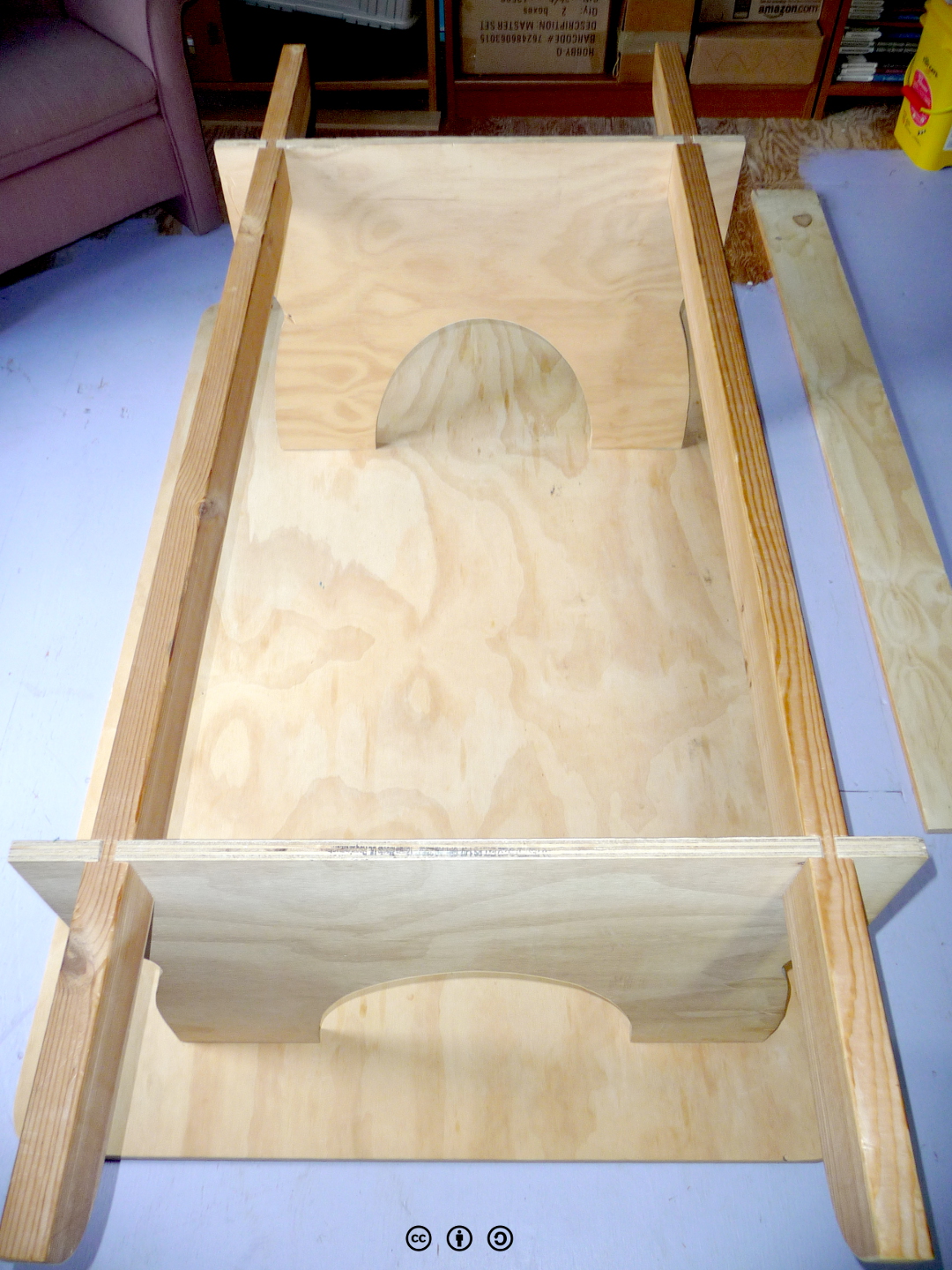

The legs and braces assembled.

The legs and braces assembled.

Here are the legs and braces assembled. It’s surprisingly sturdy.

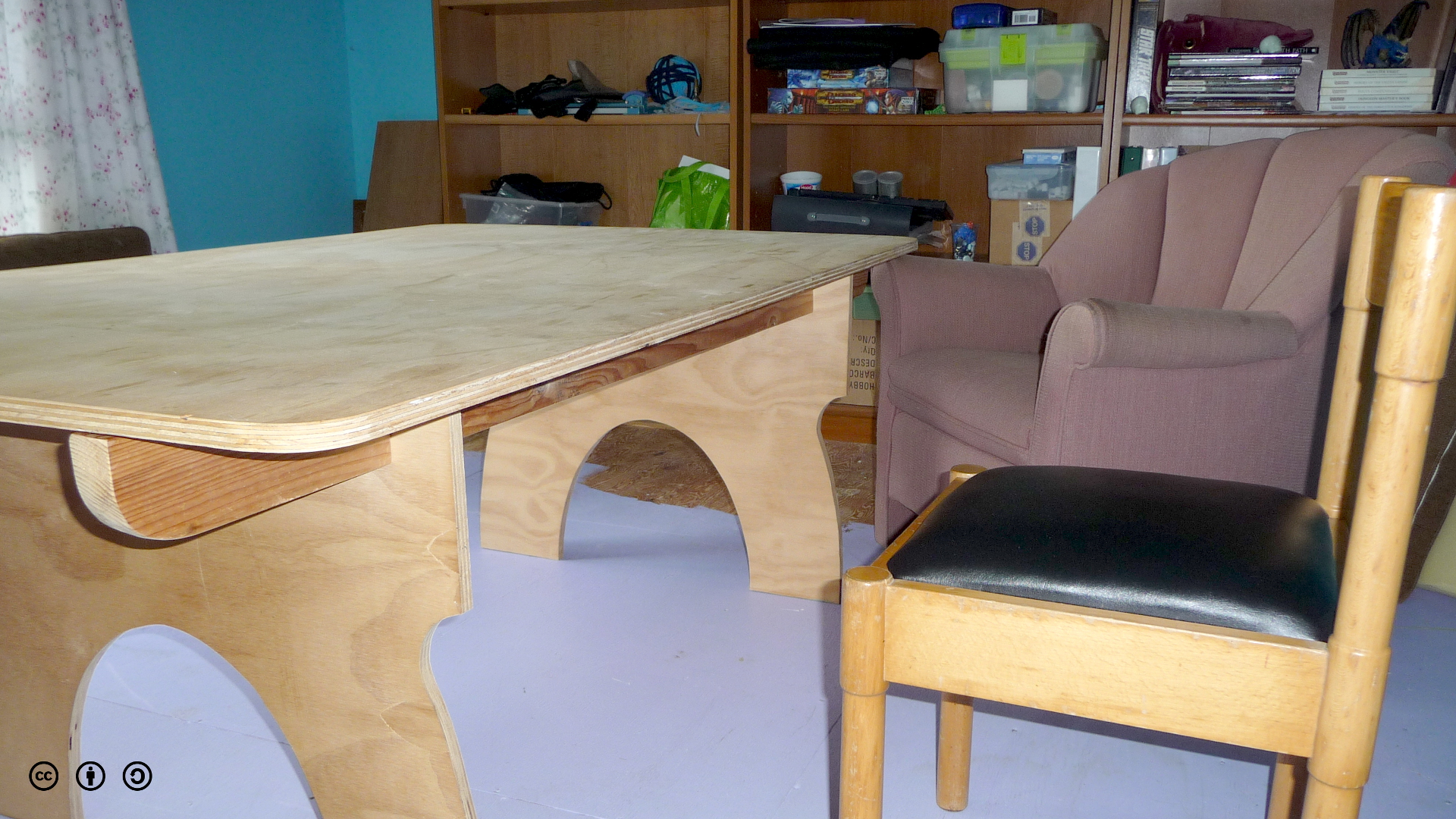

Table height was select to work well from low chairs or couch.

Table height was select to work well from low chairs or couch.

This photo shows the height of my table, which is 24″ (half the width of the plywood). It’s low enough that people in easy chairs or on a sofa can see the table easily.

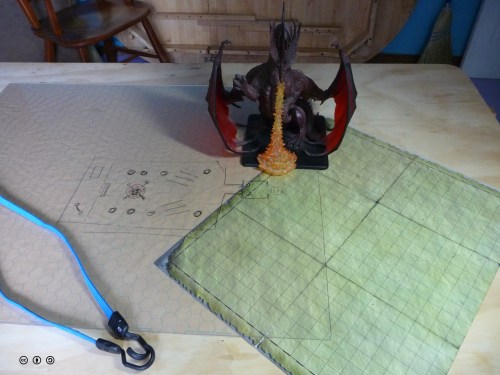

Some useful accessories: elastic tie downs, acrylic sheet or gaming mat.

Some useful accessories: elastic tie downs, acrylic sheet or gaming mat.

I used some elastic tie downs to keep the table top from sliding around too much. More recently, I picked up a sheet of acrylic, under which I can place maps or grid paper. I have a preference for wet-erase markers, and they work nicely on the acrylic.

I also picked up a couple large pieces of craft felt to cover the table, which was a nice surface until the cats got to it. I didn’t put any finish on the table, but I’m considering adding some paint (to cover the food stains).

We’re back, and in HD

Well, with HD. We moved into a new house over a year ago, and we opted not to get a cable TV subscription. But the HD antenna I got at the Shack wasn’t pulling in strong signal. Which is sad, because I almost have line of sight to the antennas on top of Mount Mansfield.

HD-antenna-01I decided to build one of the DIY antennas, following the instructions Make magazine has online.

I skipped the stand, and just hung the antenna. I even got to use my new Dremel tool to strip the coating off the coat hangers. So far, it seems to be working much better than the retail one.

CraftyMomma’s most recent project

When I got home from work, yesterday, Beloved Wife showed me her most recent creation:

A spouse who’s good with power tools. W00T!

It’s a “grazing ark” for our intrepid guinea pigs. Yes, they will be spending most of their summer days outside. (Hurray!)

It came out just exactly as she had described it to me and had sketched. We had a couple brief consultations about construction methodology, but the design and execution are all hers. Well, done, BW!
